Towaide

TA21 Wireless Flat Tow Control Panel; 1000ft Range Line of Sight

TA21 Wireless Flat Tow Control Panel; 1000ft Range Line of Sight

Regular price $175.00 USD
Regular price Sale price $175.00 USD
Sale Sold out
Shipping calculated at checkout.

Wireless Flat Tow Light Controller

Features:

  • Control your tow car/truck lights wirelessly while hauling.
  • Light controller outputs are isolated and protected from the elements via relay and fuse.
  • Plug-and-play installation with no hardwiring required.
  • Includes a transmitter pigtail that plugs into your truck's trailer port.
  • Supports up to 24W load, enough to power most tow vehicle lighting systems.
  • Long range of approximately 1000 feet.
  • Electronics are waterproofed with fully epoxy-potted to withstand harsh conditions.

Benefits:

  • Safer: Wireless tow light controllers eliminate the need for messy and potentially dangerous wiring between your tow vehicle and trailer.
  • Easier: Plug the transmitter pigtail into your truck's trailer port, and you're ready to go. There is no need to drag the corded light.
  • More durable: Wireless tow light controllers are designed to withstand the harsh elements of towing, including rain, snow, and road salt.
  • Wireless tow light controllers are perfect for wreckers who need a reliable and easy-to-use way to control their tow vehicle's lights.
  • They're also an excellent choice for anyone who wants to avoid the hassle and expense of hardwiring a traditional tow light controller.

How to install:

  1. Plug the transmitter pigtail into your truck's trailer port.
  2. Mount the receiver controller module on your tow vehicle.
  3. Connect the receiver controller module to your tow vehicle's lighting system.

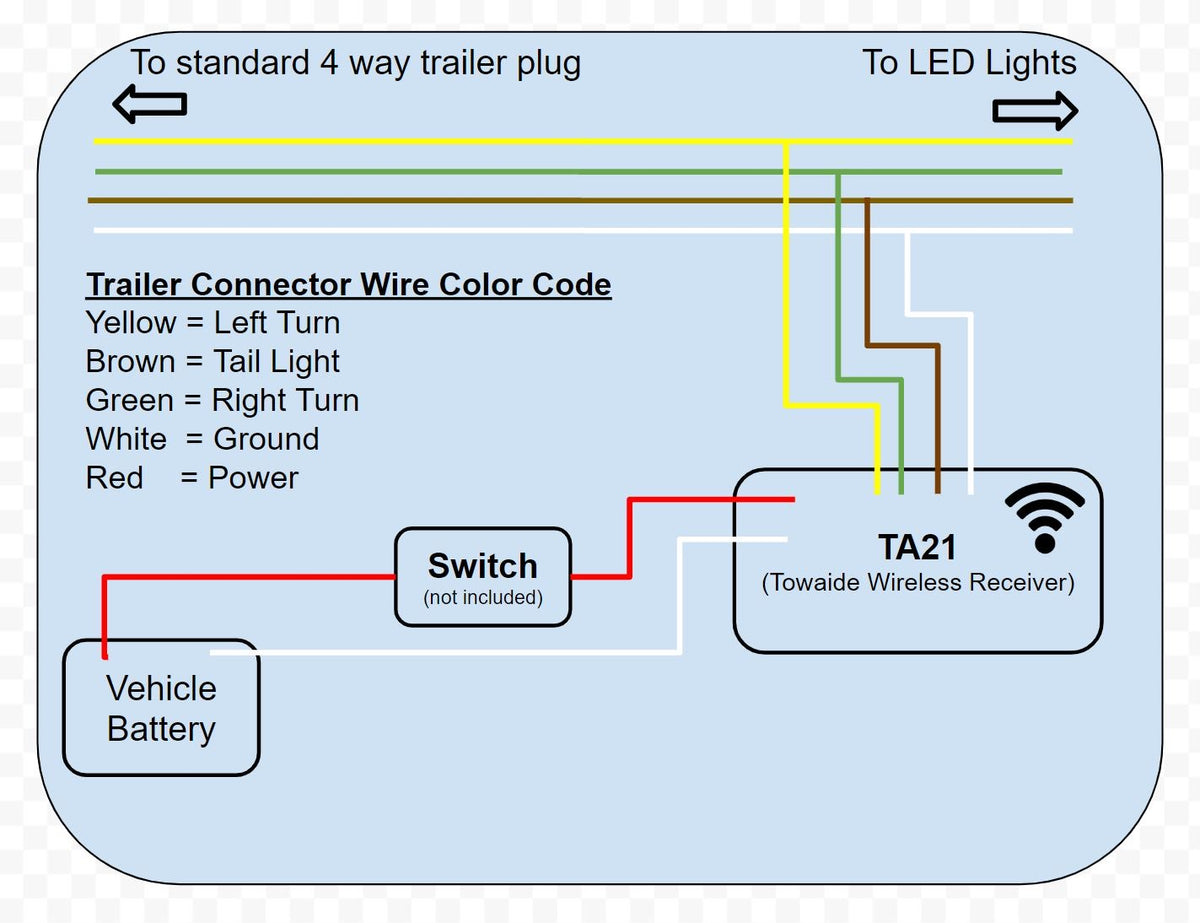

  4. Install an external power switch to remove power from the controller when towing is inactive. Follow the wiring diagram shown below.

Tips:

  • We recommend that professionals install this product, as it requires some modification.
  • Thoroughly test the tow light controller before using it on the road on each run.
  • Connect the receiver controller module to a power source only turned on when the tow vehicle is running.

Safety:

  • Always be aware of your surroundings and obey all traffic laws when towing.
  • Use turn signals and brake lights to indicate your intentions to other drivers.
  • Check your tow light controller regularly to make sure it is working correctly.

Condition: 100% Brand New
Item Type: Flat Tow Light Controller
Color: Shown as Picture
Input: 12V DC
Output: 12V DC
Supports up to 24W load

Range: Approximately 1000ft


Package List:
1 x Tail Light Control Panel
1 x Transmitter Pigtail

Wireless Flat Tow Light Controller Module Wiring pinout
Yellow - Left Turn
Green - Right Turn
Brown - Tail Light
Red - 12V Power
White - Ground

Wireless Flat Tow Light Controller Module Wiring pinout
Green - Left Turn
White - Right Turn
White - 12V Power
Black - Ground
